4 in 1 Automatic Bottle Filling Machine

Trung Quốc 4 in 1 Automatic Bottle Filling Machine  nhà cung cấp
4 in 1 Automatic Bottle Filling Machine  nhà cung cấp 4 in 1 Automatic Bottle Filling Machine  nhà cung cấp 4 in 1 Automatic Bottle Filling Machine  nhà cung cấp 4 in 1 Automatic Bottle Filling Machine  nhà cung cấp

Hình ảnh lớn :  4 in 1 Automatic Bottle Filling Machine

Thông tin chi tiết sản phẩm:

Place of Origin: China Mainland
Hàng hiệu: Jiayuan
Chứng nhận: CE,SGS
Model Number: CGF16-16-12-6

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: 19000USD
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 20 sets/month
Verified Supplier

China Mainland

  • Product Details
Chi tiết sản phẩm
Application: Liquid, Beverage, Juice Automatic Grade: Auto, Full Automatic
Bottle Type: PET, Can Driven Type: Ectric, PLC
Feature: 4 in 1 Product name: Water Filling Machine
Type: Aseptic
Điểm nổi bật:

automatic bottling machine

,

automatic water bottle filling machine





4 in 1 Full Automatic Bottle Filling Machine 4000BPH For PET Bottle



Quick Detail:



  1. Capacity: 4000 bottles per hour
  2. Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
  3. Fully automatic, no bottle no filling, no cap machine will stop.
  4. CE, ISO certificate
  5. Designed power supply: AC/380V/50HZ/3PHASE
  6. Customizable

Automatic SUS304/316 4000BPH CGF16-16-12-6 4-in-1 bottle water machine





Description:



4 in 1 Automatic Bottle Filling Machine  04 in 1 Automatic Bottle Filling Machine  14 in 1 Automatic Bottle Filling Machine  2

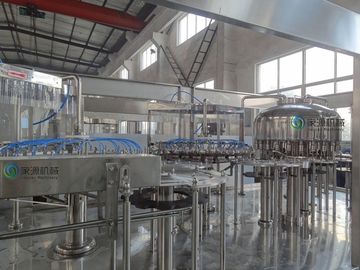

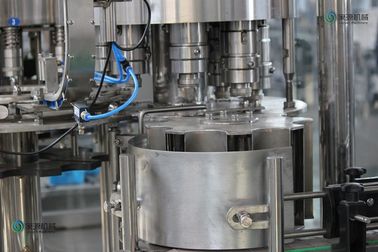

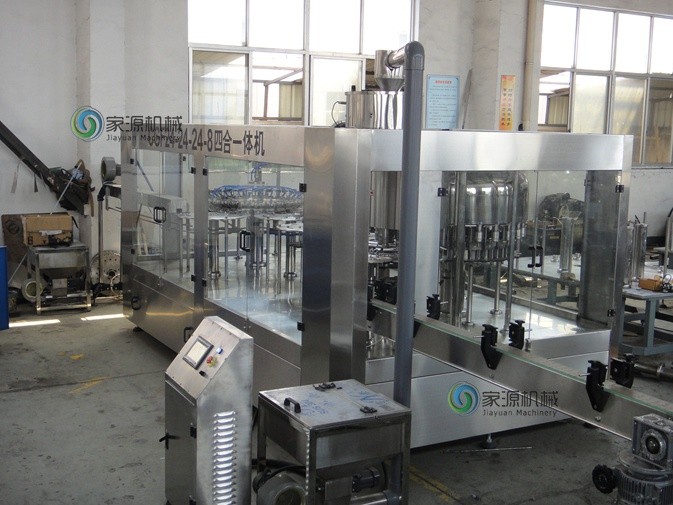

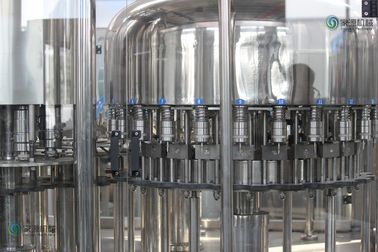

(1)The 4-in-1 bottle water machine is mainly used in the pure water, mineral water filling operations. The three functions of bottle wash fill and seal are composed in one body of the machine. The whole process is automatic.  The first rinsing machine is medical water rinsing machine, the second rinsing machine is purified water rinsing machine. The bottle will be cleared and sterilized after the two rinsing machine.

(2)The bottle water machine is used in filling mineral water or pure water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(3)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(4)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(5)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

(6)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is idea-preferred equipment for beverage maker





Application



This bottle water machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.

  1. Pure water
  2. Mineral water
  3. Juice filling with normal temperature or middle temperature.





Specifications:



Model:

CGF16-16-12-6

Capacity:500ml(b/h)

2000-4000

Suitable Bottle Height(mm)

130-280

Suitable Bottle Body Diameter(mm)

Φ40-φ80

Suitable Cap Shape

Plastic Screw Cap

Power: (W)

4.23

Filling Temperature:

Room Temperature

Water Consumption for Washing Bottle(kg/hr)

800

Gas Consumption(m3/min)

0.3

Size L×W×H (mm)

2100×1500×2200

Total Weight:(kg)

2000

Power Supply

380V/50HZ





Competitive Advantage:



  1. The three functions of bottle washing, filing and capping are composed in one body of the machine.
  2. The whole process is automatic, no bottle no filling, no cap, machine will stop.
  3. So this machine has three steps, first is washing, second is filling, third is sealing the bottle.
  4. Low power consumption, better material SUS 304, SUS 316.
  5. Small size, simple structure, low investment
  6. Auto complete line, need less worker.
