Nhà máy sản xuất bao bì và đóng gói nước giải khát chuyên nghiệp
Place of Origin: | CHINA,MAINLAND |
Hàng hiệu: | jiayuan |
Chứng nhận: | CE.SGS |
Model Number: | CGF24-24-8 |
Minimum Order Quantity: | 1SET |
---|---|
Giá bán: | USD 28000/ SET |
Packaging Details: | WOODEN |
Delivery Time: | 30WORK DAYS |
Payment Terms: | T/T |
Supply Ability: | 15 SET PER MONTH |
MATERIAL: | STAINLESS STEEL | PRODUCTION CAPACITY: | 8000-10000 |
---|---|---|---|
WATER CONSUMPTION BOTTLE: | 2500 | ||
Điểm nổi bật: | liquid bottle filling machine,water bottling machine |

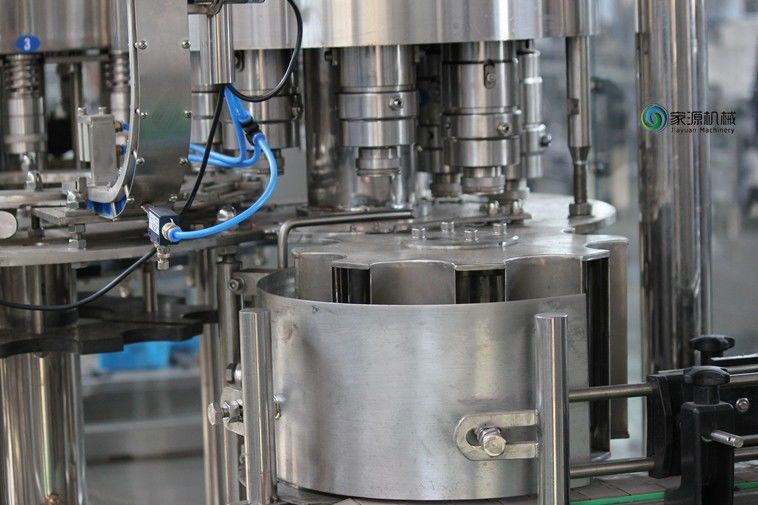

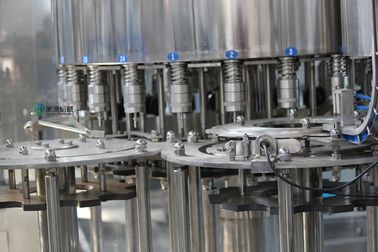

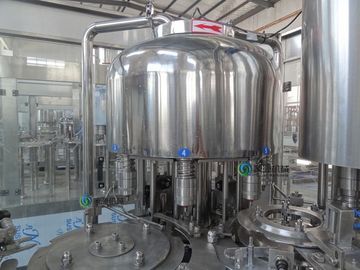

Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ
Foreign advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment reaches the international advanced level.
Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
Filling precision | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MMLiquid Level | ≤±5MM(Liquid Level) |
Polyester bottle standard(mm) | bottle diameter40-80; | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) |
Height | height:130-280 | (Height):150-320 | (Height):150-320 | (Height):150-320 |
Suitable cap shape | Plastic Screw Cap | (Plastic Screw Cap) | Plastic Screw Cap) | (Plastic Screw Cap) |
Water pressure of washing bottle(MPa) | 0.18 | 0.18 | 0.18 | 0.18 |
Water consumption for water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
Spraying position | 5 | 5 | 6 | 12 |
Dripping bottle position | 3 | 3 | 3.5 | 7 |
Gas source pressure(Mpa) | normal pressure | normal pressure | normal pressure | normal pressure |
Gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
Total power | 4.23 | 5.03 | 6.57 | 8.63 |
Total weight | 2000 | 3500 | 5500 | 8000 |
Dimension(L*W*H) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3500×2200×2250 |
