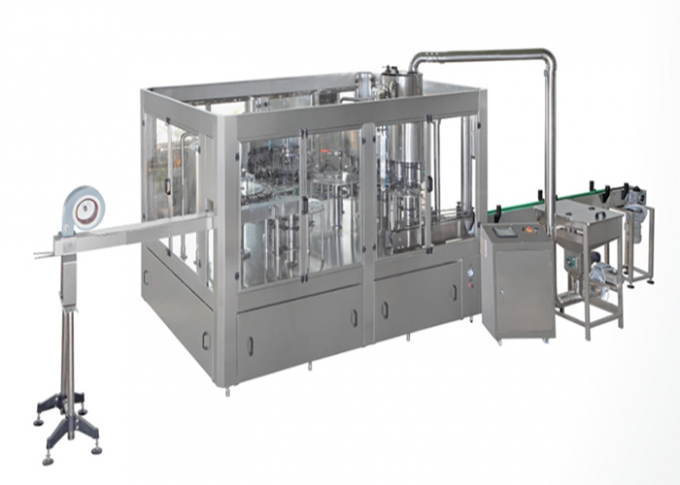

Máy chiết rót nước uống bằng nhựa / chai thủy tinh 10000BPH 6,5kw

Main performance:

1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way

2) Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, when bottle type changes, you need to change the board related with bottle diameter

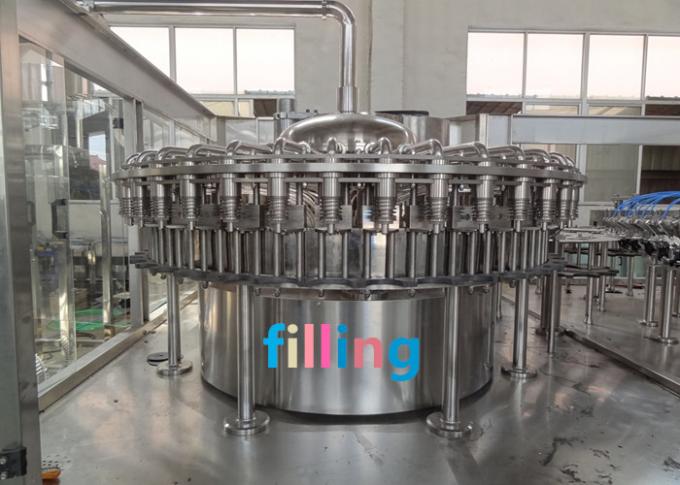

3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.

4) Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.

5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on

Features:
1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in starwheels,making it easier to change bottles.

3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement, which instead of adjusting the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10. Equipped with CIP clean-in-place return pipeline.
11. Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without
adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
