Automatic Shrink Labeling Machine

Trung Quốc Automatic Shrink Labeling Machine nhà cung cấp
Automatic Shrink Labeling Machine nhà cung cấp Automatic Shrink Labeling Machine nhà cung cấp Automatic Shrink Labeling Machine nhà cung cấp Automatic Shrink Labeling Machine nhà cung cấp

Hình ảnh lớn :  Automatic Shrink Labeling Machine

Thông tin chi tiết sản phẩm:

Place of Origin: China Mainland
Hàng hiệu: Jiayuan
Chứng nhận: CE,SGS
Model Number: WD –S350

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiation
Packaging Details: Seaworthy Wooden Case
Delivery Time: 40 days
Payment Terms: T/T; L/C
Supply Ability: 5 sets/month
Verified Supplier

China Mainland

  • Product Details
Chi tiết sản phẩm
Applied Material: PVC, PET, OPS Automatic Grade: Auto
Bottle type: PET, Round Bottle, Flat Bottle capacity: 20000bph
Driven Type: Electric Product name: Shrink Labeling Machine
Điểm nổi bật:

shrink sleeve labeling machine

,

bottle labeling machine



Full Automatic Shrink Labeling Machine 20000bph For Condiment



Quick Detail:


1. Product: Full automatic double sides labeling machine
2. Model:WD –S350
3. Main Material: SS304
4. Production capacity: 20000bph(500ml)
5. Usage: Labeling machine
6. Warranty: 1year free

Full automatic double sides labeling machine



Description:


Full automatic double sides labeling machine

1. The Scope of Application

 Label the front and back sides of different kinds of objects.

2. Device Characteristic:

Adopt mature technology PLC control system, operation is stable and high-speed

Using touch-screen control operating system, simple, practical, efficient;

Upgraded disc label station design, can label conical and flask bottle.

Screw adjustment to suppress body movements accurately

Synchronization chain mechanism ensures labeling smooth and precise calibration.

Advanced technology of pneumatic coding system, print the batch number and   expiry clearly.

Transmission-type rolling bottles make sure the labels attached more firmly;

Labeling transparent label without bubble and self-adhesive label without wrinkle;

Butterfly designed station; the angle of machine can be adjusted to adapt the bottle's shape



3. Technical parameter



Model

DLM-A

Driving Mode

Servo Motor

Operating direction

Right/Left

Production(pcs/min)

50-180(subject to the size of objects and labels)

Conveyor speed(meter/min)

≤40

Labeling accuracy

±1.0mm(subject to the roughness of the plane)

The application label

Adhesive sticker, transparent or opaque

The inner diameter of laebl rolll(mm)

76mm

The outer diameter of label roll (mm)

350mm(max)

The application size of label

Width 15-140mm, length15-300mm

The application size of bottle

The machine can customized as label  objects

Weight(kg)

220

Power(w)

1000W

Voltage

AC 110V/220V 50/60HZ

The appearance of machine(mm)

2400(L) 1350(W) 1500(H)mm



  4. Main Electrical Configuration Table



No

Name

Model

Unit

Brand

1

PLC control system

6ES7214-1A

1 set

SIEMENS

2

Touch-screen man-machine interface

6AV6648-01A

1 piece

SIEMENS

3

Inverter

22F-A2P5N103

1 piece

Delta

4

photoelectric sensor

(check label objects)

FS-N18N

1Set

Japan

KEYENCE

5

Photoelectric sensor

(check opaque label)

GS61

2 sets

German Leuze

6

Main transport motor

370W1:30

1 piece

Switzerland

ABB

7

Sent label servo motor

2004-RZ08BAIAN3

2 sets

America AB

8

Drive

2003-CSD3-08BX2

2 sets

America AB

9

Separate Bottle Motor

40W 1:30

2sets

German  JSCC



Applicable Bottle Types


Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

etc.

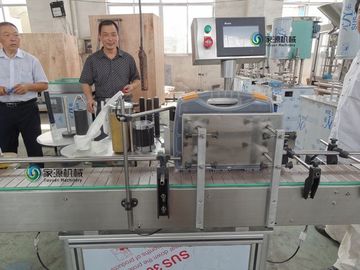

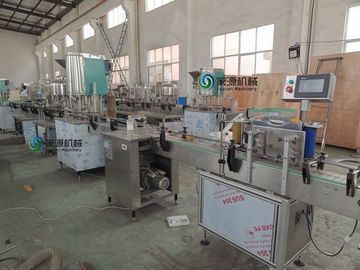

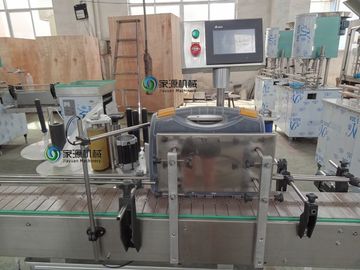

Pictures:


Automatic Shrink Labeling Machine 0Automatic Shrink Labeling Machine 1Automatic Shrink Labeling Machine 2Automatic Shrink Labeling Machine 3






Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
