Nhà máy sản xuất bao bì và đóng gói nước giải khát chuyên nghiệp
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Hàng hiệu: | JIAYUAN |
| Chứng nhận: | CE,ISO,SGS |
| Model Number: | QGF-300 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Giá bán: | US $30,000 - 50000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Vật chất: | Inox 304 | Điều kiện: | Mới |
|---|---|---|---|
| ứng dụng: | Nước giải khát, hóa chất, thực phẩm, y tế | Loại bao bì: | Thùng, Chai, Thùng |
| Nguyện liệu đóng gói: | Giấy, nhựa, gỗ | Tự động lớp: | Tự động |
| Loại hướng: | Điện | Quyền lực: | 3.8kw |
| Cung cấp dịch vụ hậu mãi: | Trung tâm dịch vụ ở nước ngoài | Bảo hành: | 1 năm miễn phí |
| Cung cấp điện: | 380V / 50HZ (có thể điều chỉnh) | Làm đầy các loại: | Áp suất bình thường |
| Chế biến các loại: | Nước | Dimension(L*W*H): | 3800 * 1300 * 1600MM |
| Kích thước chai đầy: | 1-5gallen / 3-19L | Trọng lượng: | 1200kg |
| Làm nổi bật: | 5 gallon water bottle filling machine,5 gallon filling machine |
||

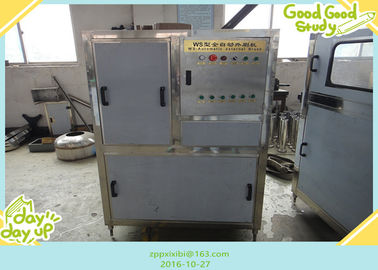

5 gallon blue barreled production line for Mineral water bottling plant
Keyword: Water Filling Machine,19 liter water filling machine
Barreled Production Line
5 gallon production line
5 gallon rinsing filling capping,5 gallon barreled production line
Barreled mineral water bottling plant
5 gallon blue barreled production line for Mineral water bottling plant
1.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.
2.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.

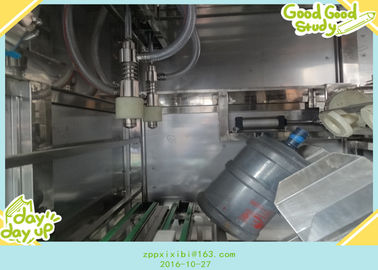

3.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Filling heads | 1 | 1 | 2 | 3 | 4 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | ||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 |
| Motor power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 |
| Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |

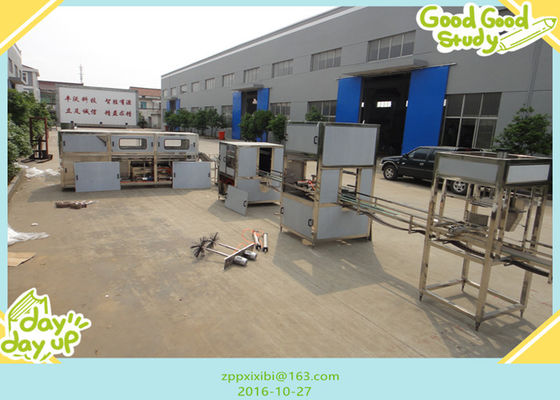

Barreled mineral water bottling plant
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator and mechanic.
5.Free beverage production technology and process configuration.
6We can help you to design the product line, workshop and provide turn-key project.
Our machine has been sold to more than 40 countries,almost of the customers are satisfiedwith the machines and our service.
Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.we are a company integrating scientific research,production and service,and have the best manufacturing facilities and production process,professional staffs,imported facilities of concentration distill series,automatic CIP series,PLC control etc.Now we have been a market leader in the Chinese food machinery industry.The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies.It has comprehensive development capacity and sound quality assurance system,and has made R&D achievement and obtained invention patents.Our machinery are widely sold in China,and exported over 20 countries,adn gained favorable feedback from users.Our major engineering projects include complete dairy products production line,beverage production line,biochemical engineering production line.
