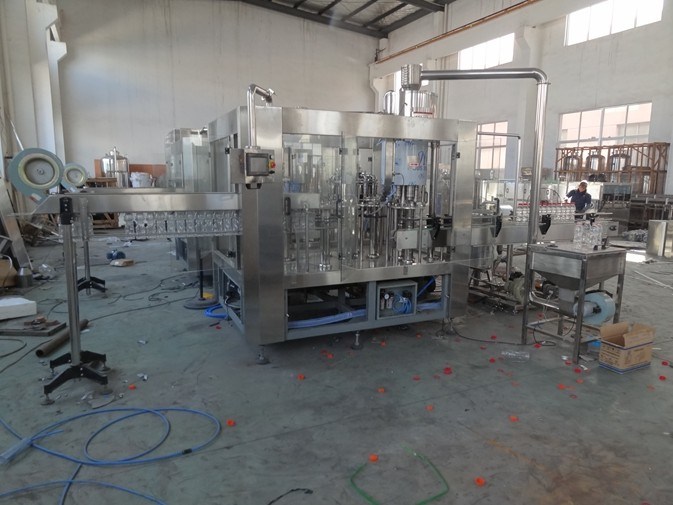

Electric Hot Filling Machine 3.88kw Fully Automatic Water Bottling Plant

Electric Hot Filling Machine 3.88kw Fully Automatic Water Bottling Plant

Quick Detail:

1. Model: RCGF8-8-3
2. Capacity: 3000BPH@0.5L bottle
3. Seller: Jiayuan
4. Application: Juice, energy drink, tea beverage etc. hot filling.
5. Easy operate for changing different bottle volume.
6. Designed applicable bottle: 0.2L-2L round PET bottle
7. Designed applicable cap: plastic screw cap.
8. CE & SGS Certificate
9. Full automatic, No bottle no filling, No cap machine stop.
10. Customizable
11. 1 Year warranty
12. Tea beverage filling machine

Automatic SS304/316 3000BPH RCGF8-8-3 Tea beverage filling machine RFC 3-in-1 Monoblock

Description:

1. Rinsing/Filling/Capping RFC3-in-1 Monoblock

Size of bottle: 200ml-2000ml round PET bottle.

Cap type: 28~38mm standard plastic screw caps
Method of bottle transferring: By holding neck
Products: Tea/juice/energy drink/milk beverage.

(1). Rinsing part

Rotative rinsing turret one treatment, fixed nozzles, with grippers.
The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

 (2). Filling part

The starwheel drive the bottles always "by holding bottle neck" through the rinsing, filling and capping steps. For different types of bottle, it is easy to adjust the structure by our specialized design.
Product bowl can reduce the loss of heat. If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recirculation tank and be pumped return to UHT again to be sterilized and heated.

(3). Capping part

Rotative capping turret, suitable to the application of plastic screw caps on PET bottles

The fixed part consists of the cap-sorting bowl, the cap feeding elevator with relevant motor and the cam actuating the capping heads.

The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

2. Main configuration

• PLC program controller: Mitsubishi
• Inverter: Mitsubishi
• Touch screen: WEINVIEW
• Proximity switch: Omron
• Photoelectrical controller: Omron
• Other electrical components: Schneider
• Pneumatic component: AIRTAC
• Water pump: NANFANG
• Main motor: Siemens
• Bearing: Harbin

Applications:

1. Energy drink and tea beverage

2. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

3. Pure water/mineral water/portable water

Specifications:

Competitive Advantage:

1. Perfect CIP system.
2. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
3. Sanitary filling head system is of umbrella structure, high filling speed.
4. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
5. Recirculation tank system has the function of supplying the material automatically.
6. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
7. Perfect filling temperature control system.
