2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water

2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water

    • 2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water
    • 2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water
  • 2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water

    Thông tin chi tiết sản phẩm:

    Place of Origin: Jiangsu, China (Mainland)
    Hàng hiệu: Jiayuan
    Chứng nhận: CE SGS ISO
    Model Number: CGF16-12-6

    Thanh toán:

    Minimum Order Quantity: 1 Set/Sets
    Giá bán: US $15,000 - 1,000,000 / Set
    Packaging Details: Wooden Box
    Delivery Time: 30 Working Days
    Supply Ability: 15 Set/Sets per Month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Máy loại: Điền vào máy Loại bao bì: Thùng, Chai, lon
    Nguyện liệu đóng gói: Giấy, nhựa, gỗ Tự động lớp: Tự động
    Loại hướng: Điện Vôn: 380V / 50HZ
    Quyền lực: 4,23kw Dimension(L*W*H): 2100 * 1500 * 2200mm
    Công suất: 2000-4000b / giờ Vật chất: đầy đủ bằng thép không gỉ
    Điểm nổi bật:

    water bottling machine

    ,

    water bottling equipment

    2000-4000BPH Gravity filling machine/line machinery for mineral water

    Introduction

    2000-4000BPH Gravity filling machine/line machinery for mineral water

    1.High speed filling valves
    2.No bottle no filling,no cap no capping
    3.CE,ISO,SGS
    4. Warranty:1 year



    Features:

    2000-4000BPH Gravity filling machine/line machinery for mineral water

    This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .

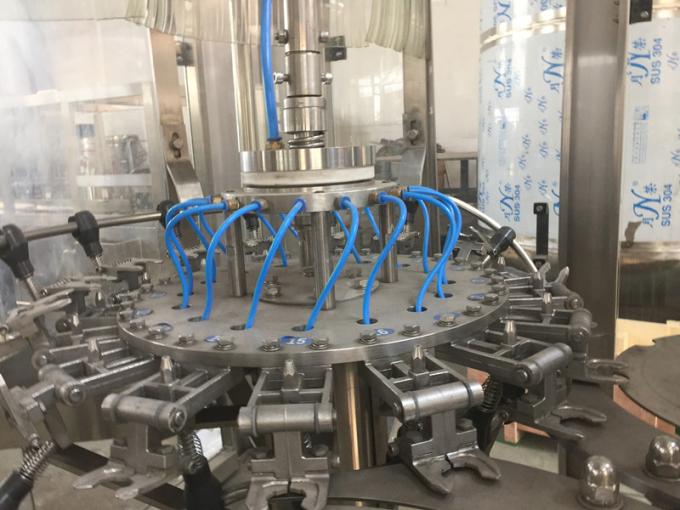

    washing part

    PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper block of a traditional bottle clamp. This part is made of SUS 304 stainless steel, the bottle clamp is hygienic and durable.

    The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and aso saves rinsing water.

    2000 - 4000 BPH Gravity Filling Machine / Filling Machinery For Mineral Water 0

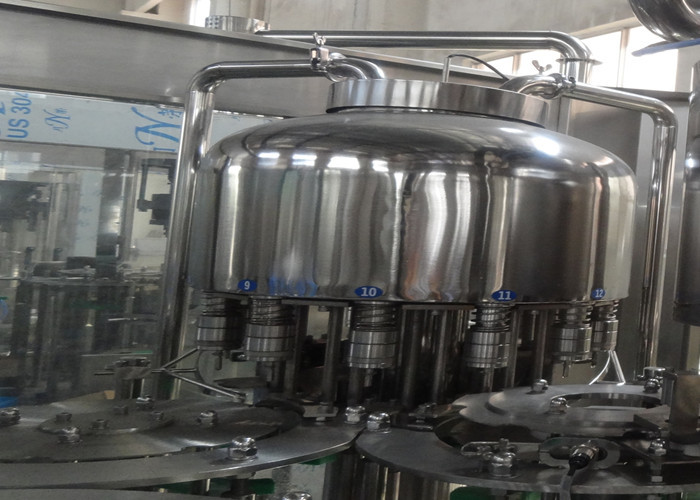

    filling part

    Rotary wheel fully made of stainless steel SUS 304

    Gravity filling method

    Filling valves aer reasonably structured with accurate filling.

    Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-mouth.

    Filler is driven through gears inside the machine frame.
    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

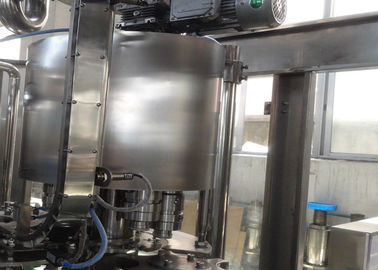

    capping part

    Capper should have highest precision, influence very much with stability and realiable of the filling monoboc. Our capper

    features as follows:

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
    Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
    The capper is equipped with inlet bottle detection switch.
    Centrifugal way of cap arranging is adopted to reduce damage of caps.
    A cap inspection system is applied to control on-off of elevator.



    Model CGF16-12-6
    Production capacity(500ml)(b/h) 2000-4000
    Filling precision ≤±5MMLiquid Level
    Polyester bottle standard(mm) ≤±5MM(Liquid Level)
    Height (Height):150-320
    Suitable cap shape Plastic Screw Cap)
    Water pressure of Washing bottle(MPa) 0.18
    Water consumption for Water bottle (kg/h) 800
    Spraying position 5
    Dripping bottle position 3
    Gas source pressure(Mpa) normal pressure
    Gas consumption(m3/mm) 0.3
    Total power 4.23
    Total weight 2000
    Dimension(L*W*H) 2100*1500*2200



    Our service

    1.One year warranty for the whole system.

    2.Free equipment installation and debugging.

    3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4.We can provide internship service and help you train the operator and mechanic.

    5.Free beverage production technology and process configuration.

    6.We can help you to design the product line, workshop and provide turn-key project.



    Our advantage

    Why choice us?

    Design Ability All the machines designed by CAD
    Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
    Reliability Electrical parts from world famous suppliers
    Professional

    Focus on beverage and cosmetics packing machines

    Exported to over 20 countries with good reputation

    6 years Alibaba Golden supplier without complaint

    Good Service Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
    Profession on Export Authorized export licence.
